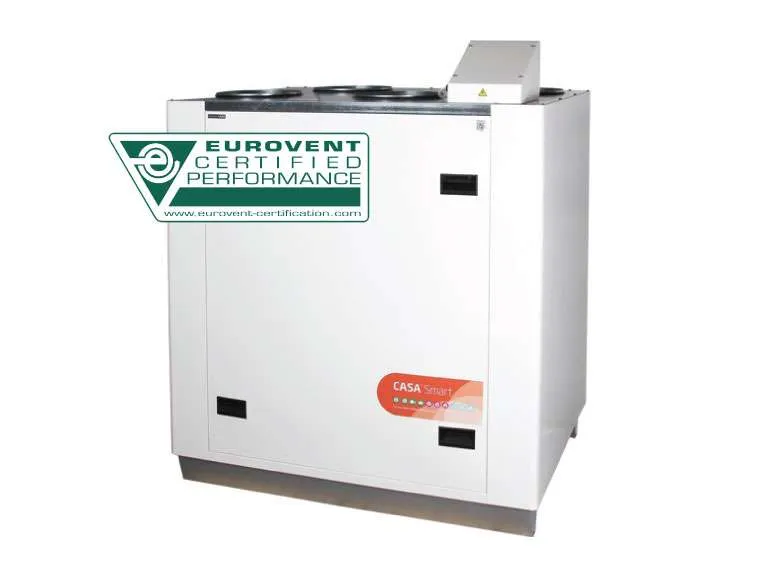

CASA R15 Smart 1710 m³/h

Top connection air handling unit that requires little space
Compact air handling unit (1080 x 788 x 1100 mm, Ø250 mm) with rotating heat exchanger perfectly suited shops, offices or conference rooms, etc. (1710 m³/h, 850 m²). The market’s most intelligent humidity control as standard. Developed, manufactured and tested for Nordic climate.
  • Ecodesign energy class NRVU*
  • Air flow range 270 – 1710 m³/h
  • Temperature efficiency up to 86 % (EN 308)
  • Annual efficiency up to 81 % (Stockholm 21°C)
  • Demand-controlled humidity function as standard
  • Automatic summer function and passive cooling
  • Anti-frost protection ensures continuous ventilation
  • External coils for heating and cooling as an option
  • Can be connect to the automated building management system (I/O / Modbus)
  • Can be integrated with the cooker hood for placement above the cooker.
  • Control System CASA Smart
* Defined as non-residential ventilation unit according to Ecodesign Lot 6.

Controls (options)

CASA Smart ventilation units are equipped with the market’s most versatile control options! Select the required control method or combine several!
