CASA R9-H Smart 997 m³/h

Horizontal air handling unit for large air flows

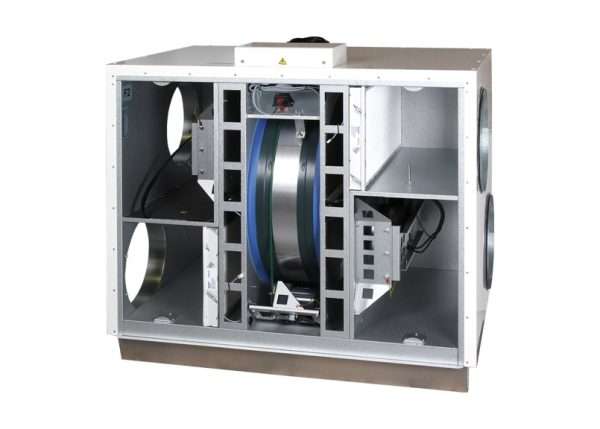

Compact air handling unit (1100 x 980 x 790 mm, Ø315 mm) with rotating heat exchanger perfectly suited shops, offices or conference rooms, etc. (997 m³/h, 500m²). Energy class A+ for the lowest possible climate impact. The market’s most intelligent

humidity control as standard. Developed, manufactured and tested for Nordic climate.

Ecodesign energy class A+*
Air flow range 270 – 997 m³/h
Temperature efficiency up to 86 % (EN 308)
Annual efficiency up to 81 % (Stockholm 21°C)
Demand-controlled humidity function as standard
Automatic summer function and passive cooling
Anti-frost protection ensures continuous ventilation
External coils for heating and cooling as an option
Can be connect to the automated building management system (I/O / Modbus)
Can be integrated with the cooker hood for placement above the cooker.
Control System CASA Smart

Controls (options)

CASA Smart ventilation units are equipped with the market’s most versatile control options! Select the required control method or combine several!

- Smart control panel
- Smart Access for mobile connection
- CASA Jazz cooker hood (integrated)
- CASA Smart cooker hoods (connected with a separate duct)
- Centralised Building automation (with SEM Modbus module or configurable I/O).
