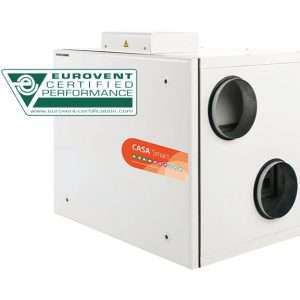

CASA R9 Smart 871 m³/h

Top connection air handling unit that requires little space
Compact air handling unit (1080 x 788 x1100 mm, Ø250 mm) with rotary heat exchanger suitable for large houses, daycare centres, offices, shops, etc. (871 m³/h, 500 m²). Energy class A+ for the lowest possible climate impact. The market’s most intelligent humidity control as standard. Developed, manufactured and tested for Nordic climate.
  • Ecodesign energy class A+*
  • Air flow range 270 – 871 m³/h
  • Temperature efficiency up to 86 % (EN 308)
  • Annual efficiency up to 81 % (Stockholm 21°C)
  • Demand-controlled humidity function as standard
  • Automatic summer function and passive cooling
  • Anti-frost protection ensures continuous ventilation
  • External coils for heating and cooling as an option
  • Can be connect to the automated building management system (I/O / Modbus)
  • Can be integrated with the cooker hood for placement above the cooker.
  • Control System CASA Smart

Controls (options)

CASA Smart ventilation units are equipped with the market’s most versatile control options! Select the required control method or combine several!
