| Unit of measurement | DuoVent 200 EC | |
| Connected air duct size | mm | 200 |
| Minimum supply voltage | V | 220 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50/60 |
| Rated power | W | 117 |
| Unit current | A | 0.94 |
| Maximum airflow | m3/h | 910 |
| Sound pressure level LpA at 3 m | dB(A) | 43 |
| Weight | kg | 39 |
| Transported air temperature (max) | °С | 55 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | – | IPX4 |
| Ingress protection rating of the drive | – | IP44 |
| Trademark | Vents |

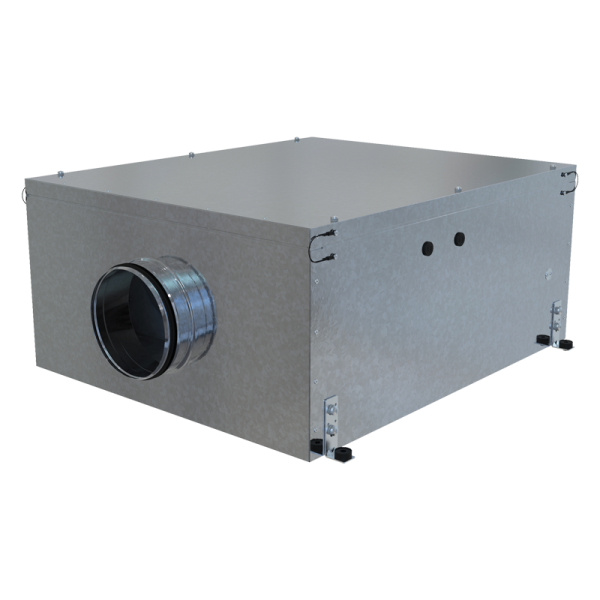

| Model | DuoVent 200 EC |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal flow rate (m3/s) | 0.134 |
| Nominal external pressure (Pa) | 260 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 30.3 |
| Effective electric power input (kW) | 0.117 |
| Sound power level (dB(A)) | 57 |
| Declared typology | NRVU UVU |
| D | L | L1 | H | W | W1 |
|---|---|---|---|---|---|
| 199 | 975 | 850 | 375 | 791 | 710 |
