With the constant increase in atmospheric pollution, especially in the most industrialise countries, the demand for air filtration is growing sharply. In the context of sustainable development, the need to minimise the power consumption of plants has become of fundamental importance and is being widely researched. The new range of active electrostatic filters with integrated electronics, the FE SYSTEM series, has been designed and developed for this reason. Electrostatic filter FE SYSTEM is an alternative to traditional pocket filter and was designed to simplify the use of electrostatic filters in AHUs and Rooftops. Its use in ventilation systems, particularly in the air-conditioning sector, does not require changes in the construction and dimensional characteristics of the plant.
FACTS
The EFI-FE SYSTEM series consists of a new range of active electrostatic filters, very practical and usable in substitution or in addition to traditional mechanical filters (bag and pocket filters), in new and /or existing installations without adaptation costs.
The electrostatic filters FE SYSTEM have been certified according to EN ISO 16890, which determines the new classification of filtration for “air filter for general ventilation”.
The filters efficiency is determined with regard to the particulate classes ePM1, ePM2,5, ePM10, and COARSE which are also used as evaluation parameters by the WHO (World Health Organization) and environmental authorities.
In addition, the Expansion Electronic electrostatic filters subjected to the tests of the UL867 standard have passed the tests and achieved the UL certification, a US standard that relates to the safety of equipment and specifically deals with the Safety of Electrostatic Air Filters.
Performances / Features:
High efficiency filtration on particles of 0,3-0,4 micron, comparable to class E10, E11 efficiency according to EN 1822:2009, and to filtration classes ePM1, ePM2,5, ePM 10 according to EN ISO 16890
Excellent solution to fight outside polluted air from PM10, PM2,5 and PM1 particles
High reduction of bacteria and virus in the air
Excellent protection of the heat exchanger and of the air pipes from obstruction of polluting agents
Remote control/signal functioning from external PLC display or directly from the led in the filter.
Considerable energy saving due to the low resistance on air-flow and therefore reduced voltage
APPLICATION FIELDS
The new range of electronic air filters FE SYSTEM, could be installed in:

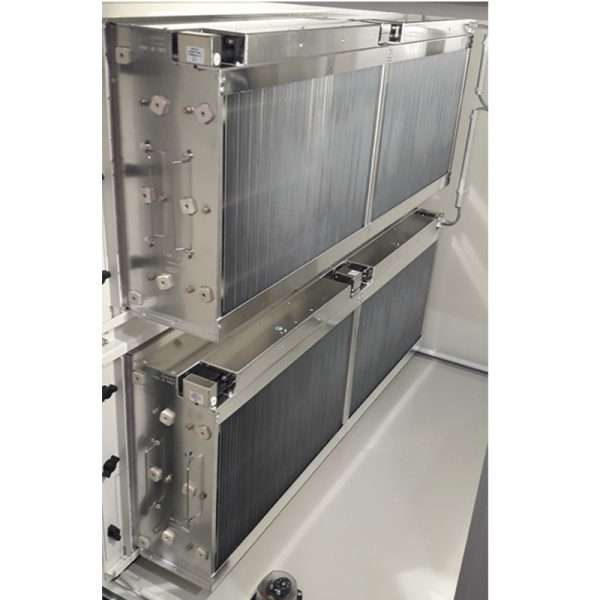

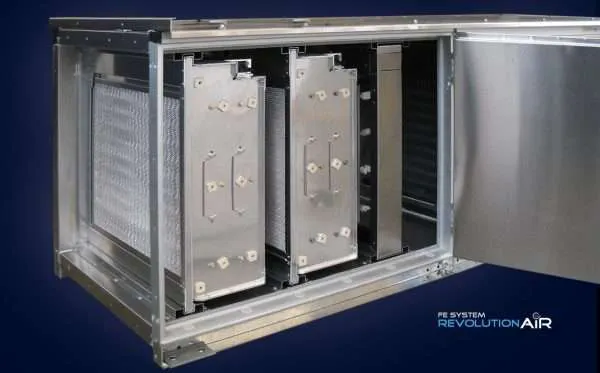

– Air handling units (electrostatic filter for AHU);
Filters is the applicability in a variety of industries thanks to the standard sizes compatible with the pocket filters.
AIRCONDITIONING: Installation inside conditioning units for residential, tertiary and industrial sectors.
INDUSTRIAL: Filtration of micro dusts, rubber and plastic fumes, fumes in general, welding fumes (such as ferrous metals, precious metals, control panels) with a maximum concentration of 20 mg/m.
HOSPITAL: Control of aerodynamic contamination for hospital rooms, white rooms, outpatient clinics, waiting rooms.
FOODSOLUTIONS: Control of air contamination during food processing.
Electrostatic filtration systems are already widely used and tested in civil and industrial environments. Based on the phenomenon of electrostatic precipitation, this type of filtration is characterized by:
1. Very high filtration efficiency, with yields greater than 99%.
2. Contemporary abatement of microorganisms such as bacteria, yeasts, molds and germs.
3. Reliable pressure drop through the filter.
4. The life cycle of the filters is equal to the useful life of the entire unit, with minimal maintenance requirements.
5. Very high level of product reliability.
This allows for a quick recovery of the higher initial investment compared to a traditional filtration system, such as the pocket type, thanks to the reduction in electric consumption of the ventilation sections, as the pressure drop is very low and maintenancecostsextremelylow since it is not necessary to periodically replace the filters.
Plants characteristics with Electrostatic precipitators (electrostatic filters): • high efficiency, on the top of E class filtration according to EN 1822 (E10 – E11) till to 2 m/s of speed velocity on the electronic filter; • low costant pressure drop, compared to the pocket filters currently in use; • maximum performance linearity (efficiency, pressure drop) during the operative life; • maximum extension of the operative life (high load capacity in terms of weight of retained pollutants).
These are the basic features, to which is added an extremely important plus: an efficient anti fungal and antibacterial action, in order to avoid the proliferation of bacteria colonies and mold in certain favourable conditions of temperature and humidity, often encountered in typical treatment plants air. For these reasons, and in order to reduce environmental impact, Expansion Electronic has implemented a retrofit’s action that allows you to replace the normal mechanical filters with those of new electrostatic generation one. The advantages are mainly two:
– The lower energy consumption, “energy saving” given by the lower pressure drop and then the re-sizing of existing ventilation fan systems. Thanks to this action is guaranteed a good reduction in CO2 emissions. – A considerable reduction of the amount of non-recyclable material.
Video
TECHNICAL DATAS
Energy consumption W
Accumulation capacity G
Air flow capacity m3/h
Annual energy consumption (KWh/Y)
Annual energy consumption (KWh/Y)
Model
EFI – FE150RV
9
140
200
400
550
625
700
150
A+
EFI – FE250RV
9
216
470
600
750
900
1200
256
A+
EFI – FE250
9
216
470
600
750
900
1200
256
A+
EFI – FE300RV
9
240
250
500
630
720
1000
213
A+
EFI – FE300
9
280
600
800
1000
1200
1600
341
A+
EFI – FE450
16
378
820
1050
1310
1570
2100
448
A+

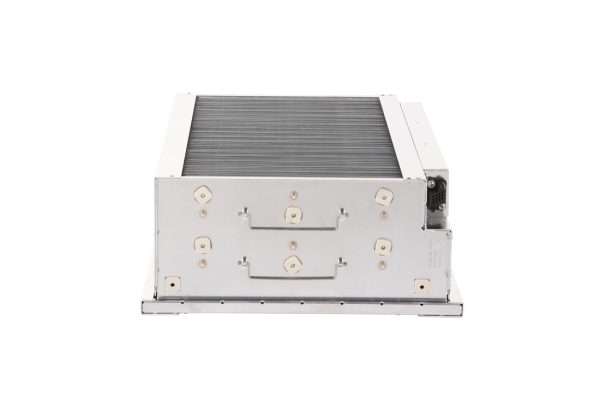

EFI – FE500
16
494
1070
1400
1730
2100
2770
590
A+
EFI – FE550
16
460
990
1270
1590
1910
2550
544
A+
EFI- FE600
16
600
1300
1700
2100
2550
3400
702
A+
Filtration Class According To UNI EN ISO 16890
ePM%
ePM 95%
ePM 95%
ePm 90%
ePM 90%
ePm 70%
Filtration class according to UNI 11254
(A,B,C,D)
A
B
C
D
–
Filtration class according to EN 1822
(E10-E11)
E11
E10
–
–
–
Air speed passage on the filter
m/s
1
2
2,5
3
4
Percentual of max flow capacity
%
40%
50%
65%
75%
100%
Pressure drop according to ISO 168890
Pa
10
17
24
37
64
DIMENSIONS
Model
Dimensions W x H x D mm
Weight Kg
EFI – FE150RV
287x287x218
4.5
EFI – FE250RV
490x287x218
8
EFI – FE250
287x490x218
8
EFI- FE300RV
592x287x218
9
EFI- FE300
287x592x218
10
EFI – FE450
490x490x218
14
EFI- FE500
490x592x218
16
EFI- FE550
592x490x218
16
EFI – FE600
592x592x218
18
CERTIFICATIONS
Certifications guarantee yields and product performance and are a tool that drives companies to reliable and high-quality choices. To guarantee what said before and to demonstrate once again the reliability and the excellence of Expansion Electronic’s products, our active electrostatic filters were tested by independent and international authorities such as for example the Hygiene Institute of Air ILH of Berlin, Polytechnic of Turin and the Technical Research Institute SP of Sweden. These authorities released the following certifications:
UL867 is a U.S. standard that relates to the safety of equipment and specifically deals with the Safety of Electrostatic Air Filters. MORE INFORMATIONS
UNI 11254:2007 classifies the Expansion Electronic filters in four filtration grades (A, B, C, D)
EN 1822:2005 certfies the Expansion Electronic filters as Absolut Filter, that is class E10-E11
ILH BERLIN certifies the hygienic and antibacterial effects of Expansion Electronic electrostatic filters that eliminate 99% of molds and bacteria from the air
Certification of the University of Lucerne certifies the non-release of the particulates and particles captured and deposited on the electrostatic filter if the ventilation unit and / or the filter itself switches off
Science Partner Swedish technical institute certifies the ozone emissions of our electrostatic filters which are the lowest in the category, that is five times lower than the levels established by the WHO
Policlinico San Matteo of Pavia certifies the abatement of molds, microbes and bacteria in the air and inside the air distribution channels by the combination of electrostatic filters and negative ionization
CRN, National Research Council, certifies the reduction efficiency of airborne pollutants between 80 and 100% of Expansion Electronic air purifiers with active electrostatic filter
CETIAT, Center Technique Des Industries Aérauliques Et Thermiques, certifies the efficiency of the C series purifiers on particles with sizes between 0.5 and 0.8 microns
BSRIA classifies the air purifiers with active electrostatic filter model Idillium 170 according to the S22/99 specifications.
