Description

APPLICATION

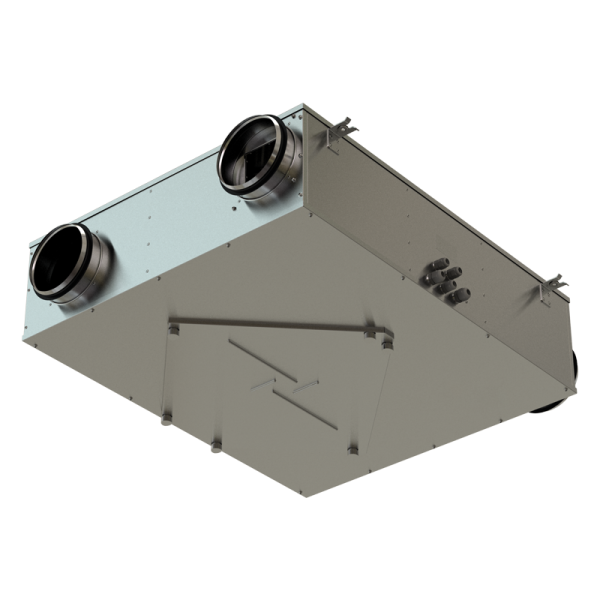

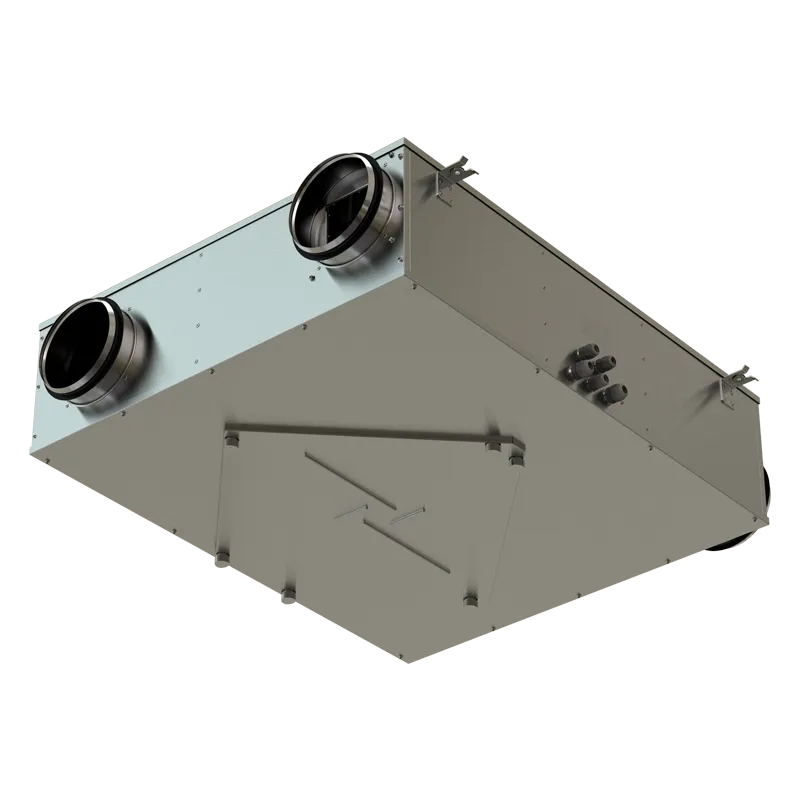

The VUE P3 air handling units are the fully featured ventilation units with heat recovery for air filtration, fresh air supply and removal of used air. The heat contained in the extract air is recuperated in the high-efficient plate heat exchanger to warm up supply air.	Designed for application in various ventilation systems that require cost-saving and controllable ventilation. All the models are compatible with round Ø 100 or 150 mm round air ducts.

FANS	DESIGN
Single-phase external rotor motors with radial impellers and forward curved blades. The motors have overheating protection with automatic restart.	The casing is made of polymer coated steel panels, internally lined with 5 or 10 mm heat- and sound-insulating layer of cellular polyurethane, depending on modification.

ENERGY/HEAT RECOVERY

Plate enthalpy cross-flow heat exchanger made of polymerized cellulose with recovery efficiency to 76 %.
The enthalpy heat exchanger enables not only heat, but also humidity recovery, thus maintaining stable indoor humidity.
In the summer period the intake air is cooled down in the heat exchanger and dehumidified and in the winter period it is warmed up and humidified.
Water vapour from the humid extract air is condensed and absorbed by the heat exchanger plates.
The recovered humidity and heat are transferred to the supply air flow.
The air streams are fully separated within the heat exchanger and the microbes and smells are isolated.

AIR FILTRATION

CONTROL AND AUTOMATION

The unit is equipped with a built-in control system, the speed controller A1, the power cable with the safety plug Euro Plug XP and the control panel A12.
The service side of the unit has a removable inspection door with hand screws for cleaning or replacement of the filters and the heat exchanger.
The control unit is located inside of the unit casing.
The power cable and the ground cable are connected to the control unit via the cable glands on the unit side wall.

MOUNTING
Due to low height of the casing the unit offers the optimum solution for the suspended ceiling installation in limited installation space.	The installation place must provide sufficient service access to the unit.

CHARACTERISTICS

Parameter	VUE 250 P3	Measurement unit
Frequency	50/60	Hz
Phase	1	˜
Voltage	230	V
Power	250	W
Current	1.1	A
Maximum air capacity	370	m³/h
RPM	2400	min^-1
Sound pressure level at 3 m distance	52	dB(А)
Transported air temperature	-25…+40	°С
Casing material	polymer coated steel	–
Insulation	5 mm, 10 mm polyurethane foam	–
Filter: extract	G4	–
PM 2.5 filtration efficiency	83	%
Filter: supply	G4, F8	–
Connected air duct diameter	150	mm
Heat recovery efficiency	66…76	%
Humidity recovery efficiency	22…32	%
Heat exchanger type	cross-flow	–
Heat exchanger material	polymerized cellulose	–
Weight	29	kg
SEC Class	E	–

Name

Brochure “VENTS VUE P3”

Manual “VENTS VUE P3”
