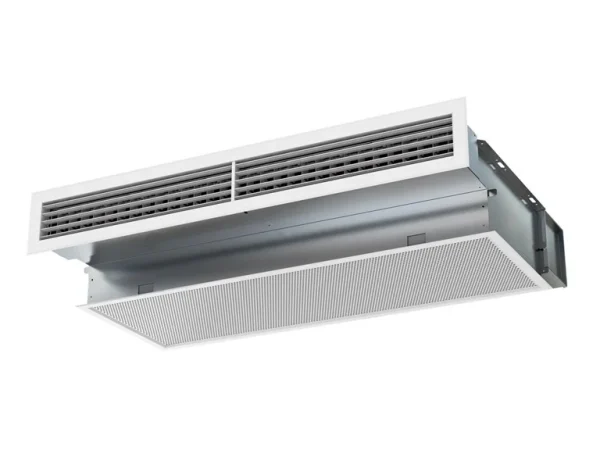

PARAGON

Compact comfort module for hotels and care rooms

  • Ventilation, cooling and heating (electricity and water)
  • Constant flow product with adjuster knob for easy and quick regulation of a constant air flow from the slot openings
  • The product can also be integrated in the WISE system as a constant flow module with control of the water valves
  • Straightforward installation with two optional water connection sides and centred air connection
  • Also available with optional factory-fitted control equipment
  • Adjustable air direction ADC and adjustable grille louvres
  • Low installation height
  • High capacity

See how the product performs based on your requirements click here

Description

Technical specifications

Air flow range: Pressure range: Cooling capacity total: Heating capacity:
l/s m3/h Pa W water (W) electricity (W)
0 – 85 0 – 306 20 – 200 Up to 3180 Up to 5060 Up to 1000
Size
Length Depth Height
(mm) (mm) (mm)
800, 1100, 1400 722 190
