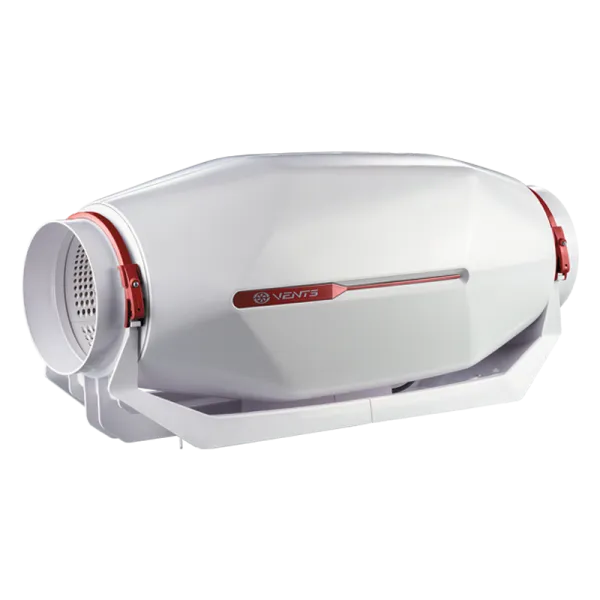

Name: Stream 100/125 EC S (100 spigot) R | Series Vents Stream EC | VentPro
Brand: Series Vents Stream EC

Description

	Unit of measurement	Stream 100/125 EC S (100 spigot) R
Connected air duct size	mm	100
Phases	–	1
Minimum supply voltage	V	230
Maximum supply voltage	V	230
Power supply frequency	Hz	50/60
Rated power	W	39
Unit current	A	0.36
Maximum airflow	m³/h	295
rotation speed at 50hz	–	3168
Sound pressure level LpA at 3 m	dB(A)	31
Weight	kg	5
Transported air temperature (max)	°С	55
Transported air temperature (min)	°С	-25
Ingress protection rating	–	IPX4
Ingress protection rating of the drive	–	IP44

ECODESIGN

Trademark	Vents
Model	Stream 100/125 EC S (100 spigot) R
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	54.3	A+	27.3	B	11.8	E
Type of ventilation unit	Unidirectional
Type of drive installed	Variable speed
Type of heat recovery system	None
Maximum flow rate (m³/h)	320
Electric power input (W)	39
Reference flow rate (m³/s)	0.054
Reference pressure difference (Pa)	50
Specific power input (SPI) (W/(m³/h))	0.077
Control typology	Local demand control
Maximum external leakage rates (%)	2.7
Sound power level (dB(A))	54
Declared typology	RVU UVU
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	41		41		41
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	5536		2830		1280
