Twinfresh Easy RL-7-50-2 room air handing unit with heat recovery

For wall thickness 120-300mm

  • Supply clean fresh air to the premises
  • Remove stale extract air from the premises
  • Clean the air of dust and insects
  • Prevent penetration of excessive humidity and appearance of mould
  • Protect against outdoor noise
  • Recover heat and provide humidity balance inside
  • Reduce the heating costs in winter and air conditioning costs in summer
  • Low energy demand

Maximum capacity – 50 m3/h.

External Hood For wall thickness 120-

EH-2 grey 160
Grey painted stainless steel outer hood for thin walls

EH-2 chrome 160
Brushed stainless steel outer hood for thin walls

Order item, 6-8 weeks

Description



icon 1 For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks Provide fresh air supply icon 5 For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks Prevent excessive indoor humidity and mould build-up
icon 2 For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks Extract stale air from the room icon 6 For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks Reduce heating and air conditioning costs
icon 3.1 For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks Consume little energy icon 7.1 For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks Attenuate indoor noise
icon 4 For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks Maintain heat regeneration and indoor humidity balance icon 8 For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks Clean air of dust and insects



TwinFresh Easy RL7 50 17 design 900 EN 1 For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks

CERAMIC ENERGY REGENERATOR

  • The high-tech ceramic energy accumulator with regeneration efficiency up to 97 % ensures extract air heat recovery for warming of supply air flow.
  • Due to the cellular structure the unique regenerator has a large air contact surface and high heat-conducting and heat-accumulating properties.
  • The ceramic regenerator is treated with an antibacterial composition which prevents bacteria growth inside of the energy regenerator.
  • The antibacterial properties last for 10 years.

AIR FILTER

  • The two integrated air filters with total filtration rate G3 provide supply and extract air filtration.
  • The filters prevent ingress of dust and insects into the supply air and contamination of the ventilator parts. The filters also have antibacterial treatment.
  • The filter cleaning is done with a vacuum cleaner or water flushing. The antibacterial solution is not removed.
  •  F8 filter is available as a specially ordered accessory, but when installed, it reduces the air flow down to 40 m3/h.

REVERSIBLE DC-FAN

  • The reversible axial fan with a DC motor and power supply voltage of 12 V serves for air supply and exhaust.
  • Due to the applied DC technology the fan is featured with low power consumption.
  • The fan motor has integrated thermal overheating protection and ball bearings for long service life.

CONTROL AND OPERATION MODES

  • The ventilator is operated with the wall-mounted control panel or the remote control for your convenience.OPERATION MODES:TwinFresh Easy RL7 50 17 control EN For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks
  • Ventilation mode. The ventilator runs in the air extract or air supply mode with a set speed. In case of synchronous operation of two connected ventilators one unit operates in the supply mode and the other one in the extract mode.
  • Regeneration mode. The ventilator runs in two cycles, 70 seconds each, to provide heat and moisture regeneration.
  • interval 1. The warm polluted air is extracted from the room and flows through the ceramic regenerator, which gradually absorbs heat and moisture. In 70 seconds after warming is started the ventilator switches to the air supply mode.
  • interval 2. The fresh and cold outdoor air flows through the heat regenerator and absorbs the accumulated moisture and heat so that the supply air flow has the room temperature. In 70 seconds, when the energy regenerator gets cold, the ventilator switches to the air extract mode. The cycle starts from the
  • beginning. If two ventilators are installed, they run in opposite phases. While one ventilator supplies fresh air, the second one extracts air from the room.

FUNCTIONING OF THE VENTILATORS

The reversible operation of the ventilator enables energy regeneration and consists of two cycles:

CYCLE ITwinFresh Easy RL7 50 17 Functioning ventilators EN For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks

  • The polluted warm air is extracted from the room and while passing the ceramic energy regenerator, it transfers the heat and moisture to it. In 70 seconds, as the energy regenerator gets warmed, the ventilator automatically switches to the supply mode.

CYCLE II

  • The fresh, but cold outdoor air flows through the heat regenerator and absorbs the accumulated moisture and heat so that the supply air flow has the room temperature. In 70 seconds, when the energy regenerator gets cold, the ventilator switches to the air extract mode. The cycle starts from the beginning. The changeover between the supply and extract modes takes place each 70 seconds.





USE

  • The ventilator is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls and other residential and public premises.
  • The ventilator is equipped with a ceramic regenerator that enables supply of fresh filtered air heated by means of extract air heat regeneration.
  • The ventilator is designed for through-the-wall mounting and is rated for non-stop operation.
  • Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).

VENTILATION ARRANGEMENT EXAMPLE

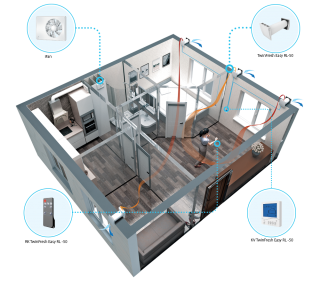

  • The ventilation system based on the TwinFresh ventilators provides for one ventilator in each room.
  • To ensure balanced ventilation, it is advisable to use a paired number of ventilators and connect those into a single network.
  • Some ventilators must be set to operate in the supply mode and the other ventilators must be set to operate in the extract mode.
  • For bigger rooms two and more ventilators are recommended.
  • TwinFresh may be used as an individual unit.  In this case the ventilation mode must be selected individually for each room.
  • Air moves between the rooms through the door openings and corridors and this way the required air circulation in the house is arranged.
  • The ventilation system with energy regeneration based on the TwinFresh ventilators significantly reduces heating and air conditioning costs.
  • Exhaust fans are recommended for very efficient extract ventilation in the kitchen and bathroom.
  • Polluted air is extracted automatically in case of actuation of the motion or humidity sensors.



TwinFresh Easy RL7 50 17 mounting EN 2 For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks

INSTALLATION EXAMPLE

TwinFresh Easy RL7 50 17 mounting 1 RU For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks TwinFresh Easy RL7 50 17 mounting 2 RU For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks TwinFresh Easy RL7 50 17 mounting 3 RU For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks
Mounting into a wall with a standard thickness
using the EH-14 outer grille
Flush mounting using the angular
mounting kit NP
Mounting into a thin wall using the EH-2
outer hood

Characteristics

Parameter TwinFresh Easy RL7-50-17 1 speed TwinFresh Easy RL7-50-17   2 speed TwinFresh Easy RL7-50-17 3 speed  Measurement unit
Speed 1 2 3
Power 2 2.7 5.1 W
Voltage 100-240 100-240 100-240 V
total current consumption 0.028 0.036 0.056 A
Frequency 50/60 50/60 50/60 Hz
Air flow in regeneration 8 15 25 m³/h
Air flow in regeneration 4 9 15 CFM
Power input 0.96 0.65 0.73 l/s
Air capacity 15 30 50 m³/h
Air capacity 9 18 29 CFM
Outdoor sound pressure attenuation 41 41 41 dB(А)
Outdoor sound pressure attenuation 2.5 2.5 2.5 Sones
Transported air temperature -15 … +50 -15 … +50 -15 … +50 °С
Transported air temperature 5… +122 5… +122 5… +122 °F
Air flow with F8 filter applied 40 40 40 m³/h
F8 filter filtration rate PM2.5 99 99 99 %
Sound pressure level at 1 m 21 27 29 dB(А)
Regeneration efficiency ≤ 92 ≤ 92 ≤ 92 %
RPM  RPM 915 1555 2330 min-1
Sound pressure level at 3 m 12 18 20 dB(А)
SEC Class A A A
Filter G3 (F8 optionally) G3 (F8 optionally) G3 (F8 optionally)
Type supply and exhaust supply and exhaust supply and exhaust

Technical Data

Specific energy consumption (SEC), kWh/(m2.a) Cold Average Warm
-75.1 А+ -35.6 А -13.0 Е
Type of ventilation unit Bidirectional
Type of drive installed Three-speed
Type of heat recovery system Regenerative
Thermal efficiency of heat recovery, % 77
Maximum flow rate, m3/h 25
Electric power input, W 5
Sound power level, dBA 38
Reference flow rate, m3/s 0.004
Reference pressure difference, Pa 0
Specific power input (SPI), W/(m3/h) 0.180
Control typology Clock control
Maximum internal leakage rates, % 2.7
Maximum external leakage rates, % 0
Mixing rate of bidirectional units, % 1
Airflow sensitivity at +20 Pa and -20 Pa 0.40
The indoor/outdoor air tightness, m3/h 0.5
Annual electricity consumption (AEC), kWh electricity/a Cold Average Warm
230 230 230
Annual heating saved (AHS), kWh primary energy/a Cold Average Warm
8089 4135 1870

TF EASY RA7 50 characteristic For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks

Dimensions

Twinfresh Easy RL 7 50 17 Dimensions For wall thickness 120-300mm Supply clean fresh air to the premises Remove stale extract air from the premises Clean the air of dust and insects Prevent penetration of excessive humidity and appearance of mould Protect against outdoor noise Recover heat and provide humidity balance inside Reduce the heating costs in winter and air conditioning costs in summer Low energy demand Maximum capacity - 50 m3/h. External Hood For wall thickness 120- EH-2 grey 160 Grey painted stainless steel outer hood for thin walls EH-2 chrome 160 Brushed stainless steel outer hood for thin walls Order item, 6-8 weeks
