VENTS TT fans are the best solution for ventilation of bathrooms and kitchens and other humid premises as well for ventilation of flats, cottages, shops, cafes, etc.

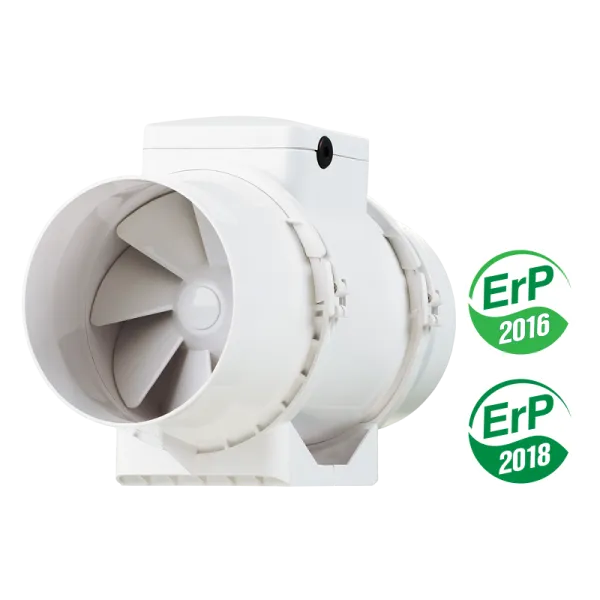

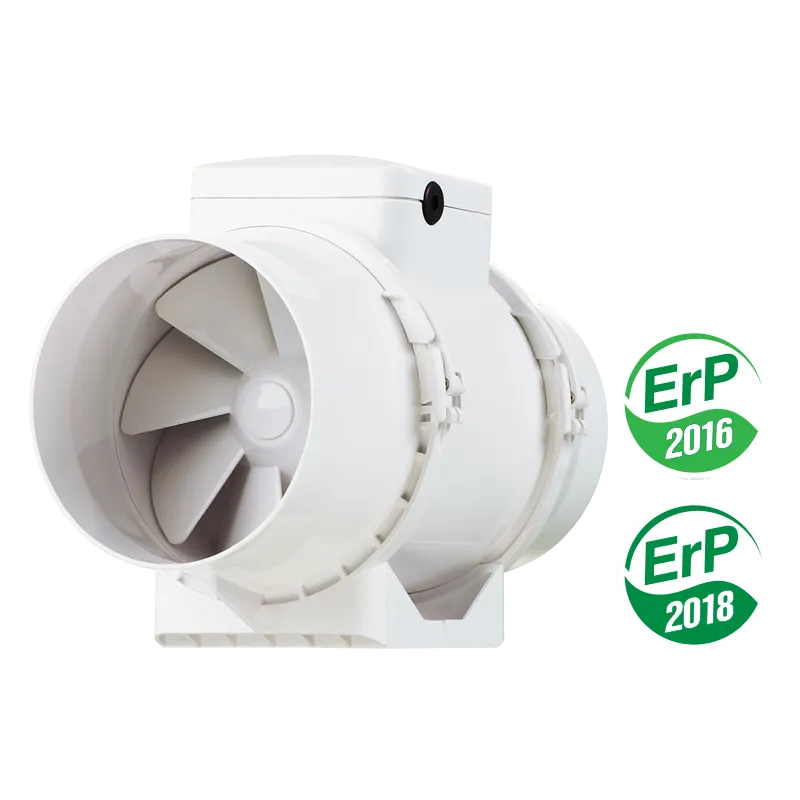

Vents TT 100 in line exhaust fan (100mm) has two speeds with the lower setting has an output capacity of 145 m3/hr, the higher setting has an output capacity of 187 m3/hr.
The fan casing is made of high quality and durable materials: ABS plastic for the VENTS TT serie
If you wish to switch between the high and low speed you will need to purchase the additional speed controller. See accessories below for the controller and other components designed to be used in conjunction with the fan.
Facts
Capacity: All capacity figures and technical data is quoted and provided by the fan’s manufacturer. Capacity is based on the unit free of ducting., Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible.
| Parameter | ||
| D | 96 | mm |
| B | 167 | mm |
| L | 246 | mm |
| H | 190 | mm |
Performance Comparison Between Sizes
| Variable | m3/hr | l/s | RPM (min-1) | Wattage | dB(A) at 3m |
| TT 100 | 187 m3/hr | 52l/s | 2385 | 33w | 36dB(A) |
| TT 125 | 280 m3/hr | 78l/s | 2455 | 37w | 37dB(A) |
| TT 150 | 520 m3/hr | 145l/s | 2460 | 60w | 44dB(A) |
| TT 200 | 1040 m3/hr | 289l/s | 2380 | 108w | 52dB(A) |
| TT 250 | 1400 m3/hr | 389l/s | 2440 | 177w | 55dB(A) |
| TT 315 | 2050 m3/hr | 570l/s | 2430 | 320w | 58dB(A) |
Pressure Curve VentPro TT Pro 200
