Vents Wall Vent Inlet With Solar Panel PSS102

฿2,750.00

VentPro Wall vent inlets take in air for constant ventilation and designed to supply fresh air into your building. PSS102 is a cost efficient and self-sufficient device to get more intensive air exchange compared to passive airing.

It can fill the room with fresh air without opening windows. It comes with a filter so dust, mosquito etc. will not come into the room. VentPro wall vent is installed to the outer wall of the building (houses, apartments, office etc.) This device needs to have sun to work efficient.

Special design internal grille makes the airflow distribution smooth with no draughts.

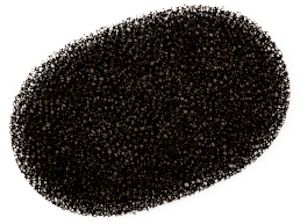

Internal grille is made of high quality ABS plastic and supplied with dust filter (G3) with the possibility to adjust or close the air flow with built in regulator.

  • Suitable for air handling of small and middle-size premises (depending on the way of installation of the fan). The air flow direction can be easily changed by turning the motor 180 degrees;
  • The solar panel provides for a more intensive air exchange as compared to regular passive airing;
  • Cost efficiency: the natural solar power is used;
  • Independence: The motor is powered by solar panel. Supply voltage of the motor is 9…18 V. Electric parameters of the solar panel change depending on intensity of the solar flux. Intermediary parameters are shown in the table below;
  • In dark hours of the day, the ventilator operates as an element of passive ventilation;
  • Possibility to manually control the cross-section of the air flow.
Category

Description

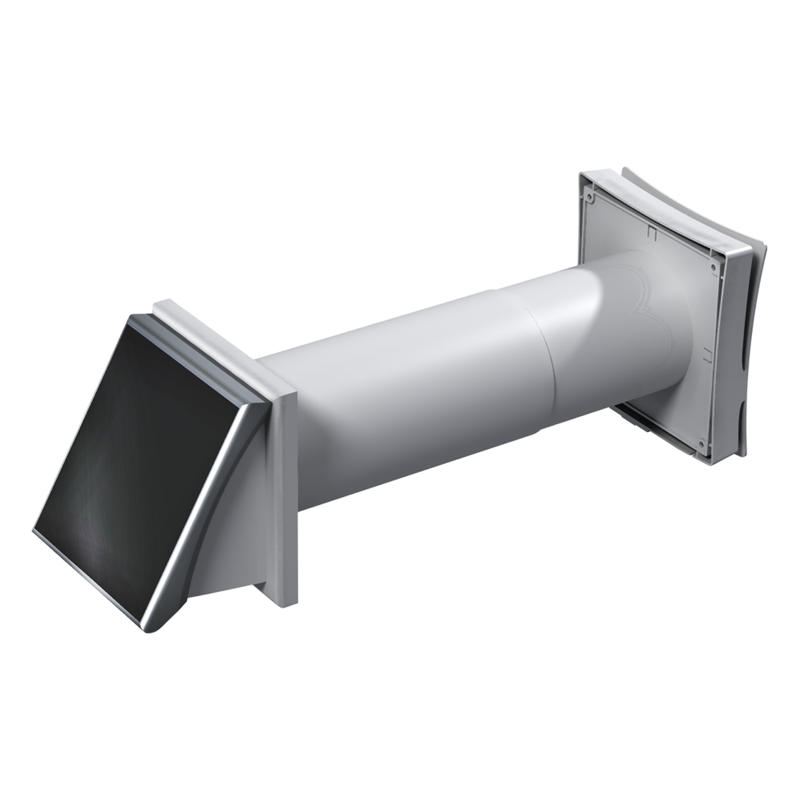

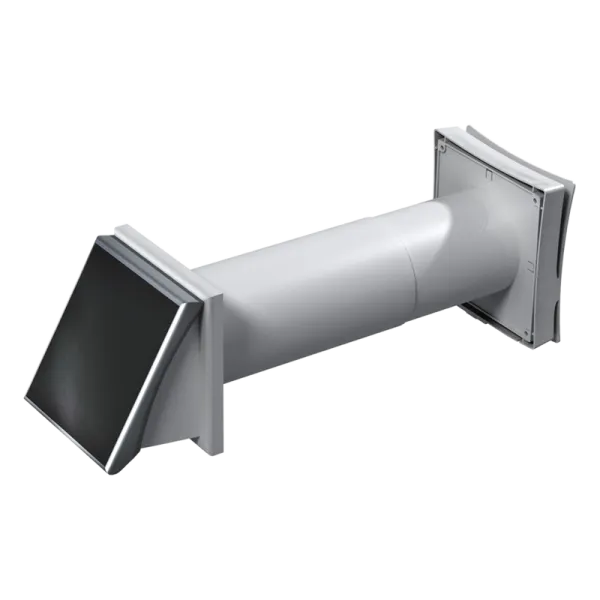

Wall vent consist of 2 ventilation grilles (internal and external) and telescopic pipe.

gr 220 VentPro Wall vent inlets take in air for constant ventilation and designed to supply fresh air into your building. PSS102 is a cost efficient and self-sufficient device to get more intensive air exchange compared to passive airing. It can fill the room with fresh air without opening windows. It comes with a filter so dust, mosquito etc. will not come into the room. VentPro wall vent is installed to the outer wall of the building (houses, apartments, office etc.) This device needs to have sun to work efficient. Special design internal grille makes the airflow distribution smooth with no draughts. Internal grille is made of high quality ABS plastic and supplied with dust filter (G3) with the possibility to adjust or close the air flow with built in regulator. Suitable for air handling of small and middle-size premises (depending on the way of installation of the fan). The air flow direction can be easily changed by turning the motor 180 degrees; The solar panel provides for a more intensive air exchange as compared to regular passive airing; Cost efficiency: the natural solar power is used; Independence: The motor is powered by solar panel. Supply voltage of the motor is 9…18 V. Electric parameters of the solar panel change depending on intensity of the solar flux. Intermediary parameters are shown in the table below; In dark hours of the day, the ventilator operates as an element of passive ventilation; Possibility to manually control the cross-section of the air flow.



Internal grille is made of high quality ABS plastic and supplied with dust filter (G3) with the possibility to adjust or close the air flow with built in regulator.





vv 220 VentPro Wall vent inlets take in air for constant ventilation and designed to supply fresh air into your building. PSS102 is a cost efficient and self-sufficient device to get more intensive air exchange compared to passive airing. It can fill the room with fresh air without opening windows. It comes with a filter so dust, mosquito etc. will not come into the room. VentPro wall vent is installed to the outer wall of the building (houses, apartments, office etc.) This device needs to have sun to work efficient. Special design internal grille makes the airflow distribution smooth with no draughts. Internal grille is made of high quality ABS plastic and supplied with dust filter (G3) with the possibility to adjust or close the air flow with built in regulator. Suitable for air handling of small and middle-size premises (depending on the way of installation of the fan). The air flow direction can be easily changed by turning the motor 180 degrees; The solar panel provides for a more intensive air exchange as compared to regular passive airing; Cost efficiency: the natural solar power is used; Independence: The motor is powered by solar panel. Supply voltage of the motor is 9…18 V. Electric parameters of the solar panel change depending on intensity of the solar flux. Intermediary parameters are shown in the table below; In dark hours of the day, the ventilator operates as an element of passive ventilation; Possibility to manually control the cross-section of the air flow.

PVC telescope with adjustable length.





pss battery 220 VentPro Wall vent inlets take in air for constant ventilation and designed to supply fresh air into your building. PSS102 is a cost efficient and self-sufficient device to get more intensive air exchange compared to passive airing. It can fill the room with fresh air without opening windows. It comes with a filter so dust, mosquito etc. will not come into the room. VentPro wall vent is installed to the outer wall of the building (houses, apartments, office etc.) This device needs to have sun to work efficient. Special design internal grille makes the airflow distribution smooth with no draughts. Internal grille is made of high quality ABS plastic and supplied with dust filter (G3) with the possibility to adjust or close the air flow with built in regulator. Suitable for air handling of small and middle-size premises (depending on the way of installation of the fan). The air flow direction can be easily changed by turning the motor 180 degrees; The solar panel provides for a more intensive air exchange as compared to regular passive airing; Cost efficiency: the natural solar power is used; Independence: The motor is powered by solar panel. Supply voltage of the motor is 9…18 V. Electric parameters of the solar panel change depending on intensity of the solar flux. Intermediary parameters are shown in the table below; In dark hours of the day, the ventilator operates as an element of passive ventilation; Possibility to manually control the cross-section of the air flow.

The external grill (ventilation cowl) is produced from high-quality ABS plastic. The solar panel which supplies power to the motor is mounted on the ventilation cap’s surface.









The design of the inner grill, as well as the device for controlling the open cross-section of the air flow, provide for a steady inflow and uniform distribution of fresh air in the room. Depending on the desirable inflow rate, you can smoothly control the intensity of air inflow.

Wall Vent airflow VentPro Wall vent inlets take in air for constant ventilation and designed to supply fresh air into your building. PSS102 is a cost efficient and self-sufficient device to get more intensive air exchange compared to passive airing. It can fill the room with fresh air without opening windows. It comes with a filter so dust, mosquito etc. will not come into the room. VentPro wall vent is installed to the outer wall of the building (houses, apartments, office etc.) This device needs to have sun to work efficient. Special design internal grille makes the airflow distribution smooth with no draughts. Internal grille is made of high quality ABS plastic and supplied with dust filter (G3) with the possibility to adjust or close the air flow with built in regulator. Suitable for air handling of small and middle-size premises (depending on the way of installation of the fan). The air flow direction can be easily changed by turning the motor 180 degrees; The solar panel provides for a more intensive air exchange as compared to regular passive airing; Cost efficiency: the natural solar power is used; Independence: The motor is powered by solar panel. Supply voltage of the motor is 9…18 V. Electric parameters of the solar panel change depending on intensity of the solar flux. Intermediary parameters are shown in the table below; In dark hours of the day, the ventilator operates as an element of passive ventilation; Possibility to manually control the cross-section of the air flow.

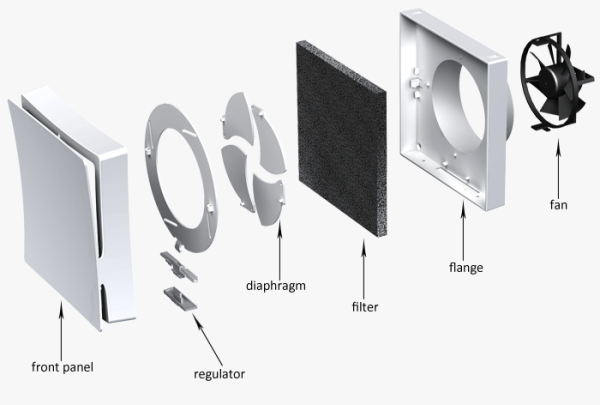

pss 102 structure 700 en VentPro Wall vent inlets take in air for constant ventilation and designed to supply fresh air into your building. PSS102 is a cost efficient and self-sufficient device to get more intensive air exchange compared to passive airing. It can fill the room with fresh air without opening windows. It comes with a filter so dust, mosquito etc. will not come into the room. VentPro wall vent is installed to the outer wall of the building (houses, apartments, office etc.) This device needs to have sun to work efficient. Special design internal grille makes the airflow distribution smooth with no draughts. Internal grille is made of high quality ABS plastic and supplied with dust filter (G3) with the possibility to adjust or close the air flow with built in regulator. Suitable for air handling of small and middle-size premises (depending on the way of installation of the fan). The air flow direction can be easily changed by turning the motor 180 degrees; The solar panel provides for a more intensive air exchange as compared to regular passive airing; Cost efficiency: the natural solar power is used; Independence: The motor is powered by solar panel. Supply voltage of the motor is 9…18 V. Electric parameters of the solar panel change depending on intensity of the solar flux. Intermediary parameters are shown in the table below; In dark hours of the day, the ventilator operates as an element of passive ventilation; Possibility to manually control the cross-section of the air flow.

Voltage, V Consumption current, А r.p.m. Air flow capacity, m3/h
9 0.0064 1390 13
12 0.0073 1754 15
15 0.0083 2140 17
18 0.0092 2490 20
