EAGLE Ceiling

Rectangular nozzle diffuser for supply and extract air

Below you can see the standard distribution pattern.
Would you like to know more and see additional settings? Click here.

See how the product performs based on your requirements click here

  • Also available in the Extract air version

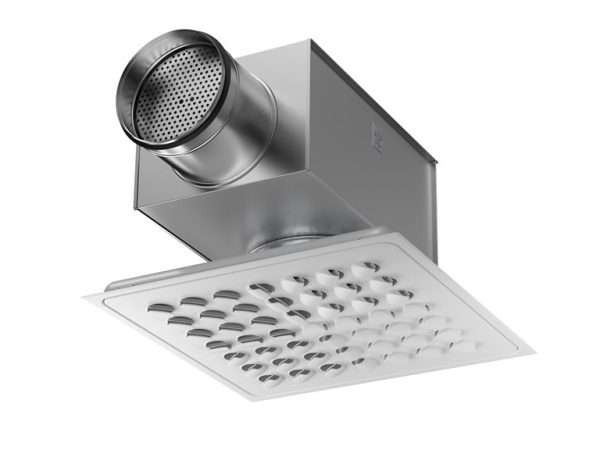

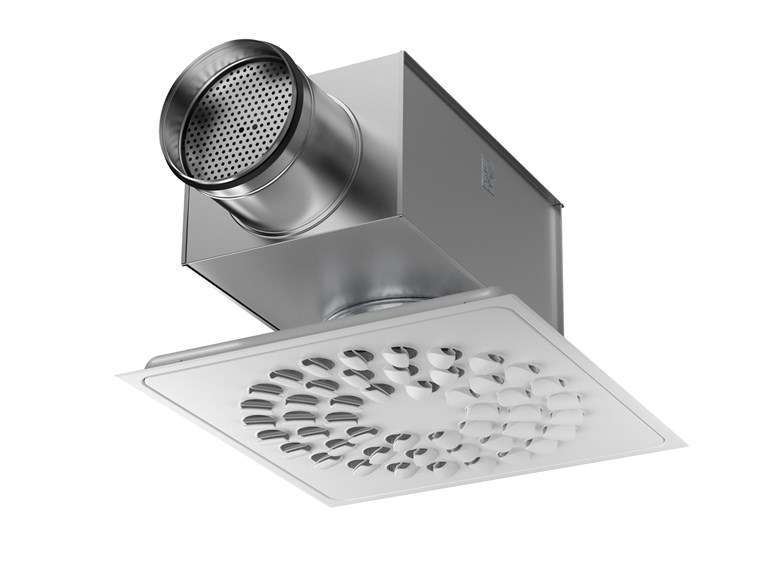

  • Available with circular (EAGLE CC) and rectangular (EAGLE CR) nozzle pattern
  • Suitable for VAV and DCV applications
  • Fast and simple installation and commissioning through Swegon Quick Access
  • Manages air flows substantially below room temperature (High DT)
  • Designed for modular suspended ceilings
  • Adapter for false ceilings
  • ALS commissioning box with 1 or 2 changes in dimension between the inlet and outlet
  • Available in a version with low installation height
  • 100% flexible spread pattern
  • ADAPTER for suspended ceiling system
  • Standard colour White RAL 9003
    • 5 alternative standard colours
    • Other colours upon request
Categories , Tag

Warning: foreach() argument must be of type array|object, string given in /home/customer/www/ventpro.co.th/public_html/wp-content/themes/ventpro-theme/functions.php on line 278

รายละเอียดเพิ่มเติม

Technical specifications

AIR FLOW – SOUND PRESSURE ROOM (Lp10A) *)

EAGLE Ceiling R 25 dB(A) 30 dB(A)
 35 dB(A)
Size l/s m3/h l/s m3/h l/s m3/h
125-400 36 130 42 151 49 176
125-600 34 122 41 148 48 173
160-400 55 198 65 234 75 270
160-600 50 180 60 216 70 252
200-500 80 288 92 331 106 382
200-600 75 270 88 317 103 371
250-500 102 367 117 421 133 479
250-600 102 367 117 421 136 490
315-500 112 403 130 468 148 533
315-600 130 468 152 547 175 630
400-600 180 648 208 749 240 864
EAGLE Ceiling R ALS 25 dB(A) 30 dB(A) 35 dB(A)
Size Size l/s m3/h l/s m3/h l/s m3/h
125-400 100-125 27 97 32 115 38 137
125-600 100-125 27 97 32 115 38 137
160-400 125-160 44 158 52 187 61 220
160-600 125-160 42 151 50 180 60 216
200-500 160-200 64 230 75 270 88 317
200-600 160-200 62 223 72 259 86 310
250-500 200-250 88 317 102 367 119 428
250-600 200-250 88 317 102 367 119 428
315-500 250-315 104 374 120 432 138 497
315-600 250-315 119 428 137 493 160 576
400-600 315-400 165 594 190 684 220 792
*) Lp10A = Sound pressure incl. A-filter with 4 dB room attenuation and 10 m2 room absorption area.

Data specified in the lower table applies to open damper when the commissioning box ALS is used.
