Air handling unit with rotary heat exchanger
เครื่องจัดการอากาศที่ประหยัดพลังงานที่สุดในตลาด พร้อมระบบควบคุมที่เป็นเอกลักษณ์ ครอบคลุม และใช้งานง่าย

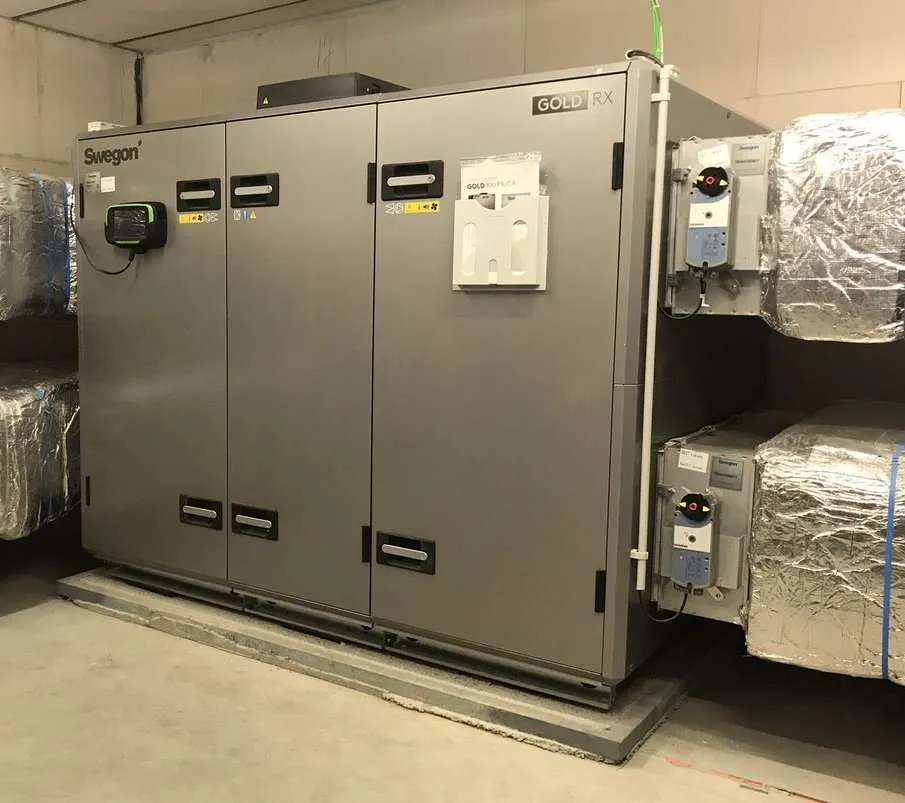

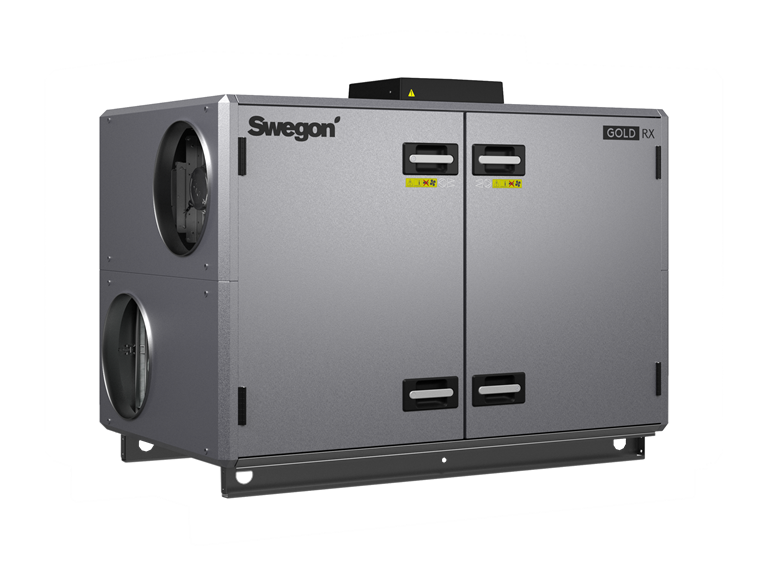

GOLD RX is a complete air handling unit with rotary heat exchanger, direct-driven supply air and extract air fans as well as supply air and extract air filters.
Temperature efficiency, heat exchanger up to 85%
Air flows up to 50.400 m³/h
Variable speed control for rotary heat exchanger
Recovers heat energy and cooling energy
Optimised fan sizes give greater freedom to choose exactly the right size of air handling unit and fan variants to suit the needs of the installation. This also gives even greater possibilities to optimise the energy efficiency of the current project
Rotary heat exchanger RECOnomic / RECOsorptic
A rotary heat exchanger consists of an aluminium wheel with numerous small air passages. Energy is transferred between the supply air and extract air or vice versa when the wheel rotates. This is the most energy efficient heat recovery method with a temperature efficiency that always exceeds 80%. Thanks to a patented design with a turbulent flow in the air passages, RECOnomic attains a uniquely high degree of energy efficiency.
Swegon’s rotary heat exchanger is also available in an sorption version (RECOsorptic), which increases the energy efficiency further through the product dehumidifying or recovering moisture depending on the conditions and needs.
Full control over air quality On account of the unique combination of purging sector and Carry-Over Control functionality, the risk of leakage between the extract air and supply air is minimised, which ensures the building is always ventilated with fresh air.
GOLD RX/HC – integrated cooling and heating The new generation of GOLD introduces many new opportunities. One major addition is GOLD RX/HC, a plug-and-play solution for integrated cooling and heating production. Thanks to an integrated reversible heat pump it is now easier than ever to create a comprehensive ventilation system. Incredibly easy to plan, install and commission. Furthermore, all functions are easily accessible via GOLD’s user interface.
Warning: foreach() argument must be of type array|object, string given in /home/customer/www/ventpro.co.th/public_html/wp-content/themes/ventpro-theme/functions.php on line 278
Swegon’s GOLD units are designed for comfort ventilation. To ensure superior performance, we design our own components, such as our rotary heat exchanger, fan impeller and control equipment. Commercial or retail construction? Public premises or residential properties? Whatever your segment, there’s always a model to serve you best. Our unrivalled expertise and support are naturally included, right from your planning phase and commissioning through to the first actual use of the unit in future.
Why GOLD?
Easy to plan, install and commission
World-class energy efficiency
Minimal installation space required
Fully integrated control system with unrivalled functionality
Easy to adapt functionality for altered requirements
Premium-quality adaptable section platform
Simple & smart – IQlogic
A smart system also has to be easy for the user. The IQlogic control system with its award-winning user interface and convenient IQnavigator hand-held terminal makes it easy for you to unlock the full potential of GOLD. Naturally, GOLD is readied for online connection and communication with the main control system. Thanks to our built-in WiFi, you can connect with the unit’s control functions via your smartphone or other mobile device.
Web demo IQlogic
This feature allows you to test the control system in the GOLD unit from your internet browser.
To log in, use the following credentials: User name: local or installation Password: 0000 for local, 1111 for installation
Units with rotary heat exchangers allow you to achieve the ultimate in temperature and annual energy efficiency; our patented heat exchangers with turbulent air flow being uniquely effective. This, combined with the short installation length typically makes them the first choice for most applications. The turbulent flow in the rotor and the Carry-Over Control feature makes them ideally compatible with VAV and DCV system applications. The rotors can be surface-treated in different ways. For example, with the RECOsorptic sorption technology coating for enhanced humidity recovery, or epoxy for heavy-duty environments. GOLD RX is designed to minimise the risk of air and odour transmission between the air flows.

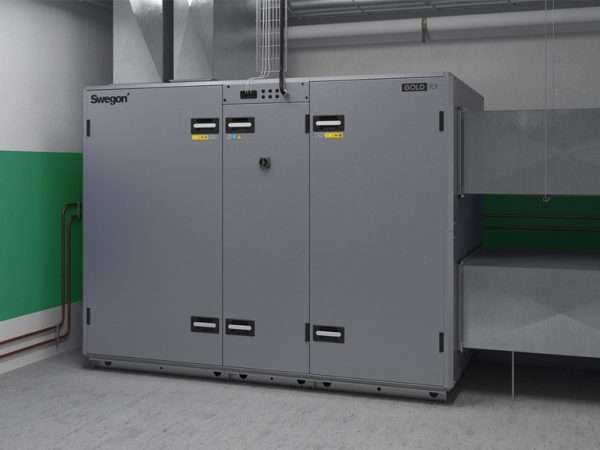

Discover the L-concept
Renovation projects often involve the replacement of old air handling units in small plant rooms. To meet today’s demands for energy efficiency and to comply with the ErP Energy directive, a physically larger air handling unit is required, but it is seldom possible to change the size of the plant room.

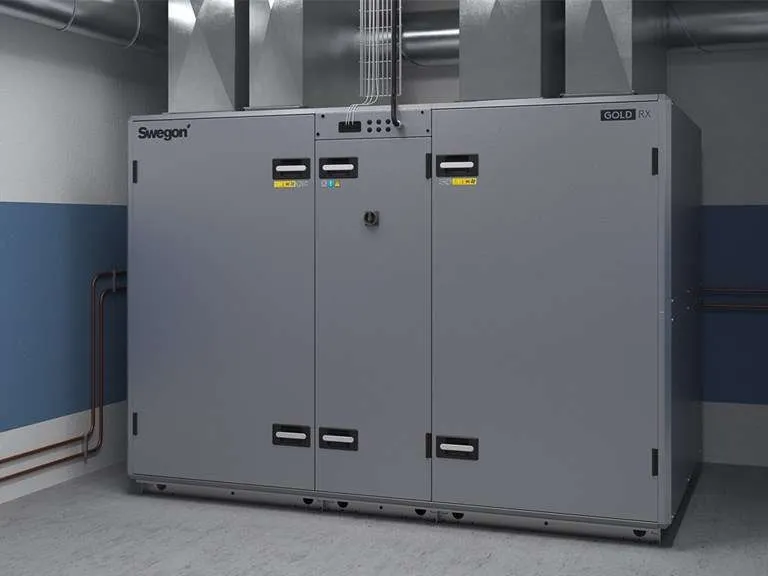

This is where the new GOLD Top range comes in, as it is designed to meet energy efficiency requirements without the need to change the size of the plant room. The newL -concept allows the unit to be connected vertically and horizontally. This means that larger units can be installed and maximum utilisation of space inside the plant room is ensured.
