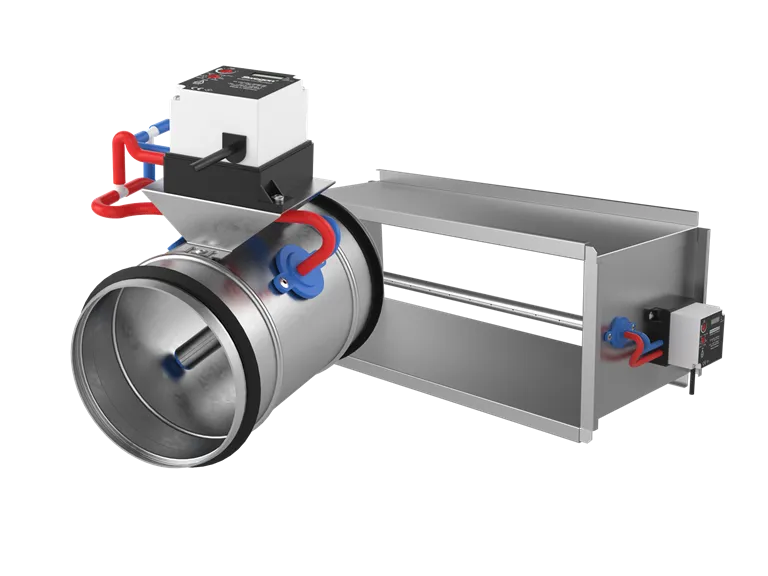

REACT V

Variable flow damper

Variable or constant flow regulation
Can be mounted directly at bends and duct transitions/reductions (circular)
Rapid access to readings via the controller display
Quick setting of parameters
Analogue controls or Modbus control
Can be easily anti-condensation insulated in the duct system
Variants:
- Circular connections: Ø100-630 mm
- Rectangular connections: 200×200-1400×700 mm
- Available with spring return actuator

See how the product performs based on your requirements

Category Variable Air Volume Control Tag Featured

Warning: foreach() argument must be of type array|object, string given in /home/customer/www/ventpro.co.th/public_html/wp-content/themes/ventpro-theme/functions.php on line 278

รายละเอียดเพิ่มเติม

รายละเอียดเพิ่มเติม

Technical specifications

Flow range

Size	Min.		Max.*
Size	l/s	^m3/h	l/s	^m3/h
100	5	18	67	241
125	9	32	108	389
160	16	58	184	662
200	25	90	292	1051
250	40	144	470	1692
315	63	227	747	2689
400	102	367	1240	4464
500	164	590	1900	6840
630	300	1080	2950	10620
