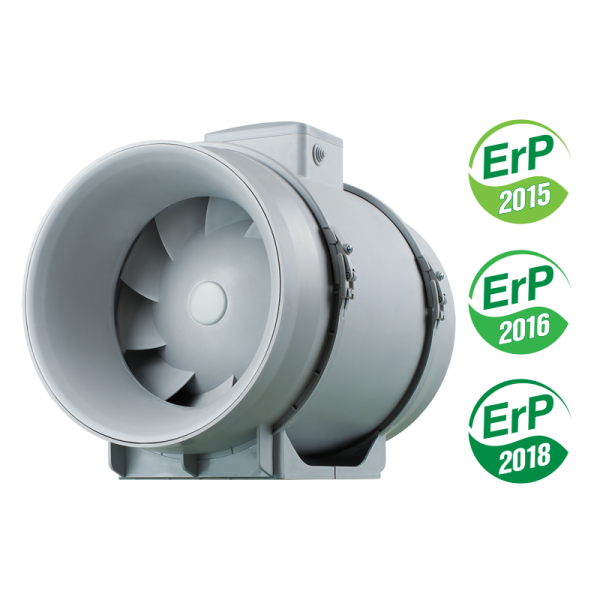

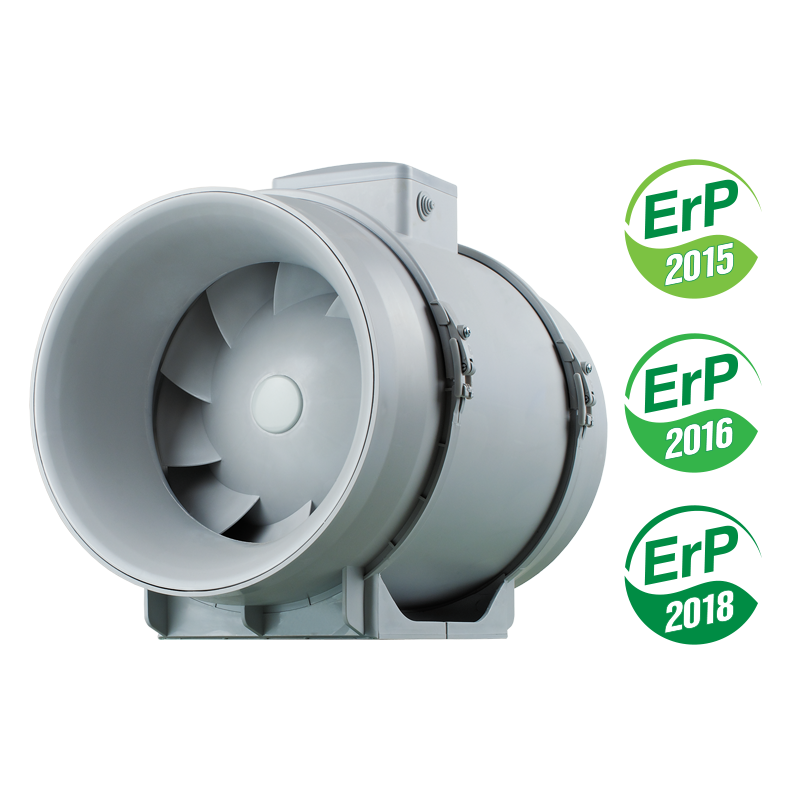

Vents Inline Fan TTPRO 200



VentPro TT Pro fans are the best solution for ventilation of bathrooms and kitchens and other humid premises as well for ventilation of flats, cottages, shops, cafes, etc.

The VentPro TT Pro 200 in line exhaust fan (200mm) has two speeds with the lower setting has an output capacity of 830 m3/hr, the higher setting has an output capacity of 1040 m3/hr. It is Manufactured from high quality low flammable polypropylene with a removable motor block for easy maintenance. Single phase motor with built in thermal overheating protection. The ball bearing motor has a service life up to 40,000 hours at continuous operation. The motor has IPX4 ingress protection rating.

If you wish to switch between the high and low speed you will need to purchase the additional speed controller. See accessories below for the controller and other components designed to be used in conjunction with the fan.

คำอธิบาย

Facts

  • Serie: VentPro Inline Fan TT Pro Series
  • Installation: Duct Type
  • Air Capacity: Max, 1040 m3/h
  • Fan speed max speed: 2380 rpm
  • Sound: 45-52 dB
  • Duct Dimension: 200 mm
  • Voltage / Frequency: 220-230 / 50/60 Hz
  • IP Class: IP X4
  • Power: 76-108 W
  • Current (A): 0.34-0.48
  • Material: Low flammable polypropylene
  • Timer Function: NO
  • Humidity Function: NO
  • Motion Function: NO

Capacity: All capacity figures and technical data is quoted and provided by the fan’s manufacturer. Capacity is based on the unit free of ducting., Ductable Fans: If you are ducting this product it is advisable to keep the duct run as short, straight and tight as possible.



VentPro TT Pro dimensions diagram   VentPro TT Pro fans are the best solution for ventilation of bathrooms and kitchens and other humid premises as well for ventilation of flats, cottages, shops, cafes, etc. The VentPro TT Pro 200 in line exhaust fan (200mm) has two speeds with the lower setting has an output capacity of 830 m3/hr, the higher setting has an output capacity of 1040 m3/hr. It is Manufactured from high quality low flammable polypropylene with a removable motor block for easy maintenance. Single phase motor with built in thermal overheating protection. The ball bearing motor has a service life up to 40,000 hours at continuous operation. The motor has IPX4 ingress protection rating. If you wish to switch between the high and low speed you will need to purchase the additional speed controller. See accessories below for the controller and other components designed to be used in conjunction with the fan.

Parameter
D 199 mm
B 239 mm
L 261 mm
H 295.5 mm





Pressure Curve VentPro TT Pro 200

VentPro tt 200 pro curve m3hr   VentPro TT Pro fans are the best solution for ventilation of bathrooms and kitchens and other humid premises as well for ventilation of flats, cottages, shops, cafes, etc. The VentPro TT Pro 200 in line exhaust fan (200mm) has two speeds with the lower setting has an output capacity of 830 m3/hr, the higher setting has an output capacity of 1040 m3/hr. It is Manufactured from high quality low flammable polypropylene with a removable motor block for easy maintenance. Single phase motor with built in thermal overheating protection. The ball bearing motor has a service life up to 40,000 hours at continuous operation. The motor has IPX4 ingress protection rating. If you wish to switch between the high and low speed you will need to purchase the additional speed controller. See accessories below for the controller and other components designed to be used in conjunction with the fan.
