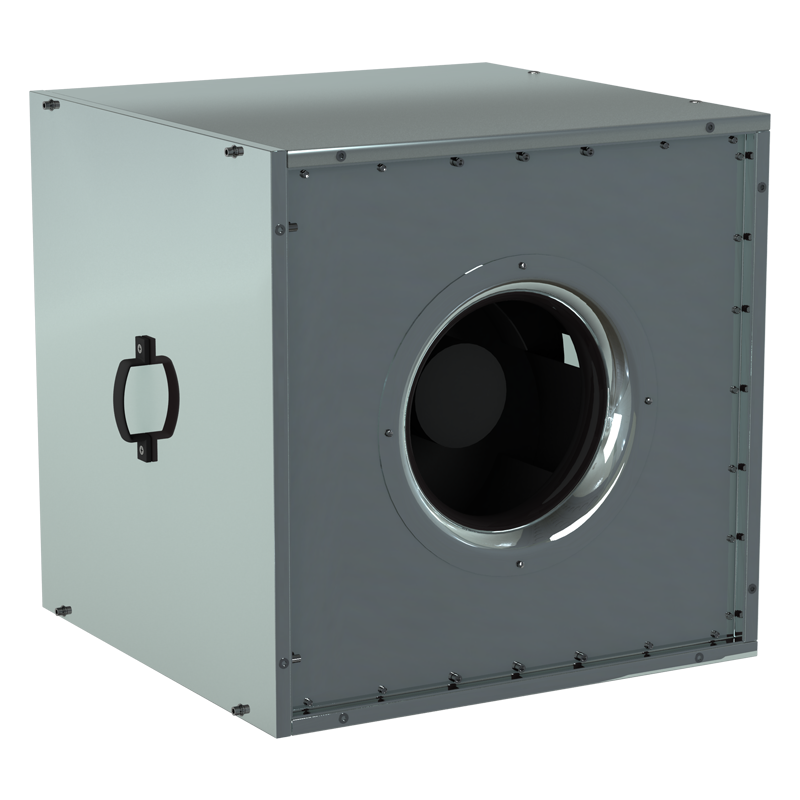

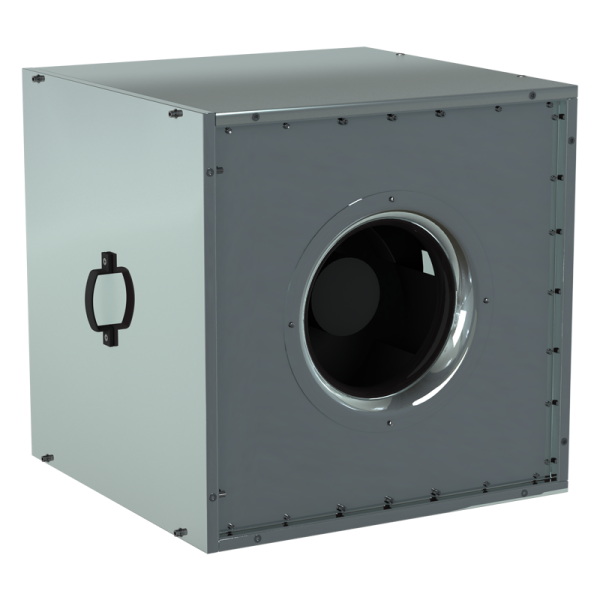

VS 630S-4D
VS 630S-4D - Image 2
VS 630S-4D - Image 3
VS 630S-4D - Image 4

VS 630S-4D

Series: VS
Inline centrifugal fans with backward curved blades in heat- and sound-insulated casing
  • Maximum airflow: 16870 m3/h
  • Sound pressure level LpA at 3 m: 69 dB(A)
  • Sound insulation
  • Motor type: AC
  • Impeller type: Centrifugal backward curved blades
  • Casing material: Aluzinc
  • Installation in any position
Category

Description

Unit of measurementVS 630S-4D
Connected air duct sizemm630
Minimum supply voltageV400
Maximum supply voltageV400
Power supply frequencyHz50
Rated powerW4250
Unit currentA7.55
Maximum airflowm3/h16870
Sound pressure level LpA at 3 mdB(A)69
Weightkg100
Transported air temperature (max)°С60
Transported air temperature (min)°С-40
Ingress protection rating–IPX4

speed_102,0004,0006,0008,00010,00012,00014,00016,00002004006008001,0001,200Airflow [m3/h]Static pressure [Pa]

xspeed_1
01,110
84.7741,105.852
169.5481,101.698
254.3221,097.533
339.0961,093.351
423.8691,089.147
508.6431,084.915
593.4171,080.65
678.1911,076.346
762.9651,071.998
847.7391,067.6
932.5131,063.146
1,017.2861,058.631
1,102.061,054.05
1,186.8341,049.396
1,271.6081,044.665
1,356.3821,039.85
1,441.1561,034.946
1,525.931,029.948
1,610.7041,024.85
1,695.4771,019.647
1,780.2511,014.333
1,865.0251,008.902
1,949.7991,003.348
2,034.573997.668
2,119.347991.86
2,204.121985.935
2,288.895979.902
2,373.668973.769
2,458.442967.548
2,543.216961.246
2,627.99954.873
2,712.764948.44
2,797.538941.954
2,882.312935.426
2,967.085928.865
3,051.859922.281
3,136.633915.682
3,221.407909.079
3,306.181902.481
3,390.955895.896
3,475.729889.336
3,560.503882.808
3,645.276876.323
3,730.05869.889
3,814.824863.517
3,899.598857.215
3,984.372850.993
4,069.146844.861
4,153.92838.828
4,238.694832.903
4,323.467827.096
4,408.241821.416
4,493.015815.873
4,577.789810.476
4,662.563805.234
4,747.337800.157
4,832.111795.252
4,916.884790.516
5,001.658785.943
5,086.432781.528
5,171.206777.265
5,255.98773.148
5,340.754769.172
5,425.528765.33
5,510.302761.618
5,595.075758.028
5,679.849754.557
5,764.623751.197
5,849.397747.944
5,934.171744.791
6,018.945741.733
6,103.719738.765
6,188.493735.879
6,273.266733.072
6,358.04730.336
6,442.814727.666
6,527.588725.058
6,612.362722.504
6,697.136719.999
6,781.91717.537
6,866.683715.114
6,951.457712.722
7,036.231710.357
7,121.005708.012
7,205.779705.683
7,290.553703.362
7,375.327701.045
7,460.101698.726
7,544.874696.398
7,629.648694.058
7,714.422691.697
7,799.196689.312
7,883.97686.896
7,968.744684.444
8,053.518681.949
8,138.292679.406
8,223.065676.81
8,307.839674.155
8,392.613671.434
8,477.387668.643
8,562.161665.776
8,646.935662.826
8,731.709659.788
8,816.482656.657
8,901.256653.426
8,986.03650.091
9,070.804646.645
9,155.578643.082
9,240.352639.398
9,325.126635.585
9,409.9631.639
9,494.673627.554
9,579.447623.324
9,664.221618.943
9,748.995614.406
9,833.769609.707
9,918.543604.84
10,003.317599.8
10,088.091594.583
10,172.864589.197
10,257.638583.651
10,342.412577.955
10,427.186572.118
10,511.96566.15
10,596.734560.06
10,681.508553.857
10,766.281547.551
10,851.055541.151
10,935.829534.667
11,020.603528.108
11,105.377521.484
11,190.151514.804
11,274.925508.078
11,359.699501.314
11,444.472494.523
11,529.246487.713
11,614.02480.895
11,698.794474.077
11,783.568467.269
11,868.342460.481
11,953.116453.722
12,037.889447.001
12,122.663440.321
12,207.437433.677
12,292.211427.062
12,376.985420.472
12,461.759413.901
12,546.533407.344
12,631.307400.794
12,716.08394.247
12,800.854387.697
12,885.628381.139
12,970.402374.566
13,055.176367.974
13,139.95361.356
13,224.724354.708
13,309.498348.024
13,394.271341.297
13,479.045334.524
13,563.819327.698
13,648.593320.813
13,733.367313.865
13,818.141306.847
13,902.915299.755
13,987.688292.583
14,072.462285.33
14,157.236277.997
14,242.01270.582
14,326.784263.085
14,411.558255.506
14,496.332247.845
14,581.106240.1
14,665.879232.273
14,750.653224.362
14,835.427216.367
14,920.201208.287
15,004.975200.122
15,089.749191.873
15,174.523183.538
15,259.297175.117
15,344.07166.609
15,428.844158.015
15,513.618149.334
15,598.392140.565
15,683.166131.709
15,767.94122.764
15,852.714113.731
15,937.487104.608
16,022.26195.397
16,107.03586.1
16,191.80976.727
16,276.58367.285
16,361.35757.784
16,446.13148.232
16,530.90538.636
16,615.67829.007
16,700.45219.352
16,785.2269.68
16,8700

speed_102,0004,0006,0008,00010,00012,00014,00016,0003,7003,8003,9004,0004,1004,2004,300Airflow [m3/h]Power [W]

xspeed_1
03,790
84.7743,793.699
169.5483,797.404
254.3223,801.121
339.0963,804.855
423.8693,808.613
508.6433,812.399
593.4173,816.221
678.1913,820.083
762.9653,823.992
847.7393,827.953
932.5133,831.973
1,017.2863,836.057
1,102.063,840.211
1,186.8343,844.44
1,271.6083,848.751
1,356.3823,853.149
1,441.1563,857.641
1,525.933,862.231
1,610.7043,866.927
1,695.4773,871.733
1,780.2513,876.656
1,865.0253,881.701
1,949.7993,886.874
2,034.5733,892.181
2,119.3473,897.622
2,204.1213,903.189
2,288.8953,908.874
2,373.6683,914.671
2,458.4423,920.569
2,543.2163,926.563
2,627.993,932.643
2,712.7643,938.803
2,797.5383,945.034
2,882.3123,951.327
2,967.0853,957.677
3,051.8593,964.073
3,136.6333,970.51
3,221.4073,976.978
3,306.1813,983.469
3,390.9553,989.977
3,475.7293,996.492
3,560.5034,003.008
3,645.2764,009.516
3,730.054,016.008
3,814.8244,022.477
3,899.5984,028.914
3,984.3724,035.312
4,069.1464,041.663
4,153.924,047.959
4,238.6944,054.192
4,323.4674,060.353
4,408.2414,066.436
4,493.0154,072.433
4,577.7894,078.335
4,662.5634,084.134
4,747.3374,089.823
4,832.1114,095.395
4,916.8844,100.85
5,001.6584,106.188
5,086.4324,111.411
5,171.2064,116.519
5,255.984,121.513
5,340.7544,126.395
5,425.5284,131.165
5,510.3024,135.825
5,595.0754,140.374
5,679.8494,144.815
5,764.6234,149.149
5,849.3974,153.375
5,934.1714,157.496
6,018.9454,161.512
6,103.7194,165.424
6,188.4934,169.233
6,273.2664,172.94
6,358.044,176.546
6,442.8144,180.053
6,527.5884,183.46
6,612.3624,186.77
6,697.1364,189.982
6,781.914,193.099
6,866.6834,196.12
6,951.4574,199.047
7,036.2314,201.881
7,121.0054,204.623
7,205.7794,207.274
7,290.5534,209.835
7,375.3274,212.306
7,460.1014,214.69
7,544.8744,216.986
7,629.6484,219.196
7,714.4224,221.32
7,799.1964,223.36
7,883.974,225.317
7,968.7444,227.191
8,053.5184,228.984
8,138.2924,230.697
8,223.0654,232.33
8,307.8394,233.885
8,392.6134,235.362
8,477.3874,236.763
8,562.1614,238.088
8,646.9354,239.339
8,731.7094,240.516
8,816.4824,241.62
8,901.2564,242.653
8,986.034,243.615
9,070.8044,244.508
9,155.5784,245.332
9,240.3524,246.088
9,325.1264,246.777
9,409.94,247.401
9,494.6734,247.96
9,579.4474,248.455
9,664.2214,248.887
9,748.9954,249.257
9,833.7694,249.566
9,918.5434,249.816
10,003.3174,250.006
10,088.0914,250.139
10,172.8644,250.211
10,257.6384,250.224
10,342.4124,250.174
10,427.1864,250.062
10,511.964,249.885
10,596.7344,249.643
10,681.5084,249.334
10,766.2814,248.957
10,851.0554,248.511
10,935.8294,247.994
11,020.6034,247.406
11,105.3774,246.745
11,190.1514,246.009
11,274.9254,245.198
11,359.6994,244.31
11,444.4724,243.345
11,529.2464,242.3
11,614.024,241.175
11,698.7944,239.968
11,783.5684,238.678
11,868.3424,237.304
11,953.1164,235.844
12,037.8894,234.298
12,122.6634,232.665
12,207.4374,230.946
12,292.2114,229.142
12,376.9854,227.254
12,461.7594,225.283
12,546.5334,223.229
12,631.3074,221.093
12,716.084,218.877
12,800.8544,216.581
12,885.6284,214.206
12,970.4024,211.753
13,055.1764,209.224
13,139.954,206.618
13,224.7244,203.937
13,309.4984,201.181
13,394.2714,198.352
13,479.0454,195.451
13,563.8194,192.478
13,648.5934,189.434
13,733.3674,186.32
13,818.1414,183.138
13,902.9154,179.887
13,987.6884,176.571
14,072.4624,173.196
14,157.2364,169.771
14,242.014,166.305
14,326.7844,162.805
14,411.5584,159.281
14,496.3324,155.74
14,581.1064,152.192
14,665.8794,148.644
14,750.6534,145.104
14,835.4274,141.583
14,920.2014,138.087
15,004.9754,134.625
15,089.7494,131.206
15,174.5234,127.839
15,259.2974,124.53
15,344.074,121.29
15,428.8444,118.126
15,513.6184,115.047
15,598.3924,112.061
15,683.1664,109.176
15,767.944,106.402
15,852.7144,103.746
15,937.4874,101.218
16,022.2614,098.824
16,107.0354,096.563
16,191.8094,094.421
16,276.5834,092.386
16,361.3574,090.443
16,446.1314,088.581
16,530.9054,086.785
16,615.6784,085.042
16,700.4524,083.339
16,785.2264,081.663
16,8704,080

Dimensions

Vents VS 630S-4D - Dimensions

A
800
